HDMI TFT Displays

HDMI Interface TFT's

Winstar HDMI signal Displays are designed to work with the Raspberry Pi or embedded system, single board computers (or
desktop/laptops) which support HDMI signal output.
This series of modules comes with a control board with a HDMI signal interface output. Designed to make Raspberry Pi use easy.

HDMI TFT Selector Guide PDF

HDMI TFT Displays Features

• Designed to make Raspberry Pi usage easy

• Support HDMI signal output

• Good touch response

• Fast response time

• Support Raspberry Pi GPIO

• Support mini-PCs; can work as a 2nd monitor

•Supports RTP with USB interface

•Supports PCAP option

•Without Touch panel option available

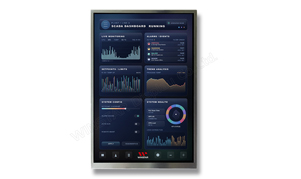

8.0" High Brightness HDMI TFT Displays

Winstar WF80GSYFUMH 8-inch HDMI TFT display series features  800×1280 IPS panel, designed for industrial, medical, and control system applications that require stable signal transmission and reliable performance. The displays are designed for vertical (portrait) interfaces for clear readability and precise control layouts.

• 800x1280 pixels
• Dimensions: 115.74×184.93×24.85 mm
• Active Area: 107.64×172.224 mm
• Viewing Angle: 85/85/85/85
• Controller IC: LT6911C
• Electrical Interface: DVI
• Brightness: 750 cd/m² to 1125 cd/m²
• Operating Temperature: -20~+70℃
• Touch panel options available

Optional component

Part No. WWHDMI-00#
Supports HDMI connector (only DVI Signal) for TFT module and Raspberry Pi

Note: If you choose Raspberry Pi 4 version, the interface is Micro HDMI, so you’ll need a Micro-HDMI-to-HDMI adapter cable.
