To support our range of RF Controllers we offer a range of RF receiver /drivers designed for the control & drive of LED strip and fittings. Control options include: Single colour and Multichannel output for CT, RGB, RGBW and RGB+CT control with output modes in constant voltage or constant current. These receivers are designed to be used in conjunction with our range of hand-held remote controls, wall panels and apps. Supply is via external constant voltage DC power supplies.

FUT series RF Receiver Drivers

The Mi-Light FUT series 2.4GHz RF receiver/drivers are designed to be controlled wirelessly  from the FUT series hand-held controllers and B/T series RF Touch Wall panels

  • Input 12V - 24VDC
  • FUT-036 Dimming control 1-channel 12A
  • FUT-035 CT Output 2-channel 6A/channel
  • FUT-037 RGB Output 3-Ch 6A/channel
  • FUT-038 RGBW Output 4-Ch 6A/channel
  • FUT-039 RGB+CT Output 5-Ch 6A/channel
  • Control colour changing, colour temperature, speed & brightness
  • L97×W37×H28(mm)

FUT series RF receiver/drivers PDF

Link to Hand-held controllers

 Remote Controls PDF

FUT035W+ 2 modes in one RF+ WiFi

The FUT035W+ RF and WiFi controller supports 2 modes in one unit: Dimming control and CCT control for brightness and  colour temperature adjustment. Control can be from a range of compatible hand-held RF remotes, RF Touch panels., voice control and Tuya Wifi smart App

  • Input voltage 12V to 24VDC Output 12A
  • 2 mode control Single colour dimming and CCT
  • 2.4Ghz RF and WiFi control
  • Supports 3rd party voice control (Alexa, Google)
  • Supports music rhythm
  • Transmission distance 30 metres
  • Supports Smartphone Tuya App

FUT035W+ Datasheet PDF

Compatible Remote Controls  PDF

FUT037W+ 3 modes in one RF+ WiFi

The FUT037W+ multi-channel RF and WiFi controller supports 3 modes in one unit: RGB, RGBW and RGBW+CT control with colour temperature & brightness adjustment. Control can be from a range of compatible hand-held RF remotes, RF Touch panels., voice control and Tuya Wifi smart App

  • Input voltage 12V to 24VDC Output 12A
  • 3 mode control RGB, RGBW and RGBW+CT
  • CT and brightness adjustable
  • 2.4Ghz RF and WiFi control
  • DMX512 controllable (only for RGB+CCT)DMX transmitter required
  • Supports 3rd party voice control (Alexa, Google)
  • Supports music rhythm
  • Transmission distance 30 metres
  • Supports Smartphone Tuya App

FUT037W+ Datasheet PDF

Compatible Remote Controls  PDF

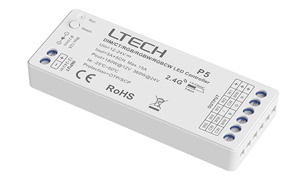

ltech P5 RF Receiver Driver

The Ltech P5 RF receiver/driver is designed to be controlled wirelessly  from the new RF mini-controllers. The P5 can support dimming, CT, RGB, RGBW and RGB+CT. One remote can be synched to multiple drivers.

  • Input 12V - 24VDC
  • Control up to 5-channels 5A/ch
  • RF 2.4Ghz
  • Constant voltage output
  • Operate in single or multi-synch mode
  • can synch up to 10 receivers together
  • L91×W37×H21(mm)

 P5 Datasheet PDF

Link to Hand-held controllers

SR-1009F series RF Receiver Drivers

The SR-1009F series RF receiver/drivers are designed to be controlled wirelessly  from the SR-2818/19 series hand-held controllers & SR-2820 touch panels for dimming CT and RGB/W control. Multiple zones can be controlled separately or synchronously.

  • Input 12V - 36VDC
  • Control up to 4-channels 5A/ch
  • RF 868/915/434Mhz
  • Constant voltage output
  • Optional constant current 350mA or 700mA output
  • Control by SR2818/9 handheld & SR-2820 touch panel
  • Operate in single or multi-zone mode
  • L180×W46×H18(mm)

SR-1009F series RF receiver/drivers PDF

Link to Hand-held controllers

 SR-2818 Remote Controls PDF

SRP-1009-75RGBW CC RF Receiver Driver

The SRP-1009-75CCF RGBW RF is a mains input constant current output receiver/driver designed to be controlled wirelessly  from the SR-2819S series hand-held controllers & touch panels for  RGBW colour control. Multiple zones can be controlled separately or synchronously.

  • Input 220-240VAC
  • Control up to 4-channels 300mA-1500mA
  • RF 868/869.5/916.5/434Mhz
  • Constant Current output set by DIP switch
  • Control by SR2819Shandheld remote
  • L244xW64xH32mm

SR-1009-75CCT RF receiver/driver PDF

Link to Hand-held controllers

 SR-2818 Remote Controls PDF

CL series RF Combo Receiver Drivers

The CL series RF 2.4GHz combo receiver drivers have a built in power supply to  facilitate mains input voltage 100-240VAC. The range offers single & multi-channel outputs in 12v or 24vDC with 60W or 75W power capability. Units may be controlled via hand-held remotes and touch panels and may be WiFi enabled for App control.

  • 100-240VAC mains input
  • 12V or 24VDC Output
  • 60W or 75W output
  • CL-1P 1-channel
  • CL-2P 2-channel
  • CL-3P 3-channel
  • CL-4P 4-channel
  • 190x53x32mm

CL-1P75v24 PDF

CL-3P75v24 PDF

F4-5A & F4-CC

The F4-5A and F4-CC are 4-channel 2.4GHz RF receiver drivers designed to be controlled from WiFi-106 LED controllers, wall mounted touch panels and F series hand held remote controller.
F4-5A is constant voltage output
F4-CC is constant current output

  • Low voltage operation
  • Input 5V - 24VDC
  • F4-CV Output 4-Ch 5A/channel
  • F4-CC Output 4-Ch 350/700/1050mA
  • Pairs with F4 Hand-held remote , EX wall controllers and Wifi106 gateway
  • Control colour changing, speed & brightness
  • L175×W44×H30(mm)

F4-5A & F4-CC PDF

M3-3A & M3-5A Receiver Drivers

The Ltech M3-3A and M3-5A are 3 channel constant voltage RF 433.92MHz receiver/drivers designed to be controlled wirelessly from the Ltech Mini-series hand-held remote controllers.

  • Low voltage operation
  • Input 5V - 24VDC
  • M3-3A Output 3-Ch 3A/channel
  • M3-5A Output 3-Ch 5A/channel
  • Pairs with M series remotes
  • Control colour changing, speed & brightness
  • L175×W44×H30(mm)

M3-M7 M3-3A-5A PDF

RF Mini-Controllers PDF

Link to Hand-held controllers

T3-CV & T3-CC Receiver Drivers

The T3-CV and T3-CC are 3-channel 2.4GHz RF receiver drivers designed to be controlled wirelessly. The receivers may be controlled by the T3 series hand held remote controls.

  • Low voltage operation
  • Input 5V - 24VDC
  • T3-CV Output 3-Channel 5A/channel
  • T3-CC Output 3-Channel 350/700/1050mA
  • Compatible with T3 Hand-held remote controllers
  • Control colour changing, speed & brightness
  • L175×W44×H30(mm)

T3 Series RGB Controllers PDF

T4-CV & T4-CC Receiver Drivers

The T4-CV and T4-CC are 4-channel 2.4GHz RF receiver drivers designed to be controlled wirelessly. The receivers may be controlled by the T4 series hand held remote controls.

  • Low voltage operation
  • Input 5V - 24VDC
  • T4-CV Output 3-Channel 5A/channel
  • T4-CC Output 3-Channel 350/700/1050mA
  • Compatible with T3 Hand-held remote controllers
  • Control colour changing, speed & brightness
  • L175×W44×H30(mm)

T4 Series RGBW Controller PDF

R4-5A & R4-CC

The R4-CV and R4-CC are 4-channel 2.4GHz RF receiver drivers designed to be controlled wirelessly. The receivers may be controlled from Wifi-104 by the V and M series hand held remote controls and wall mounted DX/UX Touch panels.
R4-5A is constant voltage output
R4-CC is constant current output

  • Low voltage operation
  • Input 5V - 24VDC
  • R4-CV Output 4-Ch 5A/channel
  • R4-CC Output 4-Ch 350/700/1050mA
  • Pairs with T3 Hand-held remote control
  • Control colour changing, speed & brightness
  • L175×W44×H30(mm)

R4-5A & R4-CC PDF

F4-DMX & F5-DMX

The F4-DMX-5A 4-channel and F5-DMX-4A 5-channel 2.4GHz RF receiver/drivers with DMX interface are designed to be controlled from WiFi-106, EX series touch panels and Q or F series hand held remotes.

  • Low voltage operation
  • Input 5V - 24VDC
  • F4-DMX-5A Output 4-Ch 5A/channel
  • F5-DMX-4A Output 5-Ch 4A/channel
  • Pairs with F4 Hand-held remote , EX wall controllers and Wifi106 gateway
  • Control colour changing, speed & brightness
  • L175×W44×H30(mm)

F4-DMX-5A & F5-DMX-4A PDF

LS2 5-in-1 Receiver Driver

The LS2 5-in-1 RF receiver/driver is designed to be controlled by RF2.4GHz wirelessly  from the FUT series hand-held controllers and B/T series RF Touch Wall panels. The driver can be used for single colour, CT, RGB, RGBW and RGBW+CT LED strips.

  • Input 12V - 24VDC
  • Up to 5-Channel 6A/channel
  • 30 metre transmission distance
  • Pairs with FUT series hand held remotes
  • Pairs with B&T series Wall Touch panels
  • 9 built-in programs
  • Control colour changing, speed & brightness
  • L124×W38×H23(mm)

Link to Hand-held controllers

 Remote Controls PDF

BC350RF RGB Controller Driver

The BC350-RF is a 3 channel constant voltage RF controller receiver/driver designed to manually control RGB LED strips and fittings  via rotary controls or hand held remote controller.

  • Input 12V - 24VDC
  • Output 3-Channel 6A/channel
  • Integrated LED display
  • Display indicated colour, speed & brightness
  • L176×W46×H30(mm)

BC-350RF RF Receiver PDF

BC354RF RGBW Controller Driver

The BC350-RF is a 4 channel constant voltage RF controller receiver/driver designed to manually control RGBW LED strips and fittings via rotary controls or hand held remote controller.

  • Input 12V - 24VDC
  • Output 4-Channel 5A/channel
  • Integrated LED display
  • Display indicated colour, speed & brightness
  • L176×W46×H30(mm)

BC-354RF RF Receiver PDF

T3-5A RGB Controller Driver

The Ltech T3-5A is a 3 channel constant voltage RF controller receiver/driver designed to be controlled manually via integral pushbuttons or via RF 2.4Ghz from the hand held T3 remote controller.

  • Low voltage operation
  • Input 12V - 24VDC
  • Output 3-Channel 5A/channel
  • Control colour changing, speed & brightness
  • Compatible with T3 Hand-held remote controllers
  • L211×W40×H30(mm)

T3-5A RF Receiver PDF

T3 Series Remote Controllers PDF
