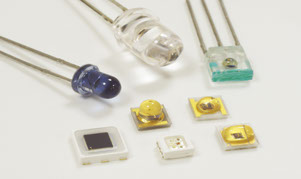

IR Emitters & Receivers
We offer a range of discrete and surface mount Infrared emitters and detectors in a choice of packages for applications including:
- Industrial electronics
- Security
- CCTV illumination
- Photo interrupters control and drive circuits
- IR remote control
- On-board graphic controller available on some models
High Power Infrared Selector Guide PDF

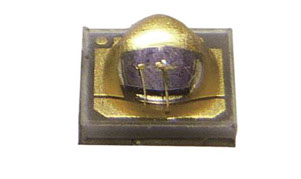

LG-CU3535HIRRZ-1-T350 High Power 850nm IR Emitter
The LG-CU3535HIRRZ-1-T350 series silicon IR photodiodes are High power surface mount emitters specially suited to CCTV and recognition systems where detection is in the range of 850nm.
- Rectangular light pattern improves illumination
- Choice of Beam angle, 130°, 90°, 60° & (x)130° (y)85°
- High Power High Efficiency
- Industry standard 3535 package 3.5 x 3.5mm
- Maximum Forward Current 500mA
- LG-CU3535HIRRZ-1-T350-LS6 210mW/sr @ 350mA

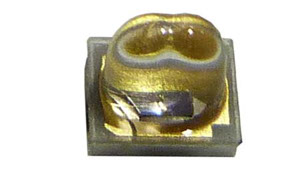

LG-CU3535HIRR-1-T1A Series High Power 850nm IR Emitter
The LG-CU3535HIRRZ-1-T350 series silicon IR photodiodes are High power surface mount emitters specially suited to CCTV and recognition systems where detection is in the range of 850nm.
- Rectangular light pattern improves illumination
- Choice of Beam angle, 130°, 90°, 60°, 45°, (x)140° (y) 100° & (x)48° (y)30°
- High Power High Efficiency
- Industry standard 3535 package 3.5 x 3.5mm
- Maximum Forward Current 1A
- LG-CU3535HIRR-1-T1A-LSC-OS 890mW/sr @ 1A
LG-CN3535DIRRZ-1-T1A High Power 940nm IR Emitter
The LG-CU3535HIRRZ-1-T350 series silicon IR photodiodes are High power surface mount emitters specially suited to CCTV and recognition systems where detection is in the range of 850nm.
- Rectangular light pattern improves illumination
- Choice of Beam angle, 130°, 90°, 60°, 45°, (x)150° (y) 100° & (x)48° (y)30°
- High Power High Efficiency
- Industry standard 3535 package 3.5 x 3.5mm
- Maximum Forward Current 1A
- LG-CN3535DIRRZ-1-T1A-LSC-OS 1150mW/sr @ 1A
LG-170H-xIRR-CT Series Mid Power Infra Red Emitters
Competitively priced against market leading brands, Medium Power surface mount chip LED packages in Infrared wavelengths are now available in 0805 sizes, with typical output as below:
- Package: 0805 Chip LED
- Maximum forward current 150mA
- LG-170H-HIRR-CT/T100 845nm
- Industry standard 3535 package 3.5 x 3.5mm
- Maximum Forward Current 1A
- Output power range from 16~21mW/sr @100mA
Mid Power IR Chip LED Selector Guide PDF

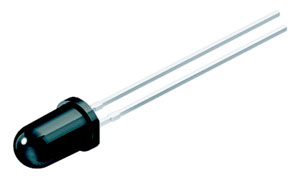

SFH313FA Silicon NPN Phototransistor
The Osram SFH313FA series silicon NPN IR phototransistors are discrete through-hole radial emitters suited to applications where detection is in the range 740 nm to 1080 nm.
- Package: 5mm Radial (T 1¾) plastic epoxy
- High photosensitivity
- Collector emitter 70v max
- On state collector current 50mA max
- Suitable for applications from 740 nm to 1080 nm
SFH313FA Silicon NPN Phototransistor
The Liteon LTR5888 and LTE309 are offered as through-hole side looking IR emitter detector pair mechanically and spectrally matched for a wide range of sensing applications.
LTE309 IR Photodiode
- Peak emission wavelength 940nm
- Angle of emission 40°
- Max Continuous forward current 50mA
- Max Peak Forward Current 1A (300pps, 10μs pulse)
LTR5888DH IR Phototransistor
- Integral visible light filter
- On state collector current 500mA
- Collector emitter breakdown voltage 30v
