Our range of LED light panels are designed to replace modular fluorescent trays, in suspended ceiling grid lighting systems. The panels are easily fitted and are offered in both slim edgelit and high output backlit type construction. The panels are fully certified for electrical safety, emissions and flammability to EN specifications.

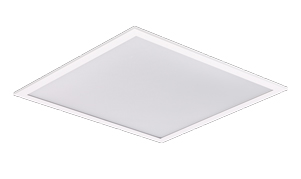

Fortimo 600x600mm Edgelit LED panels

Fortimo LED Light Panel

Fortimo LED Panels are designed to integrate into suspended ceiling grids for office & commercial lighting. The ultra-slim design facilitates easy installation and the panels are designed to meet office illumination standards offering excellent performance  and high quality of light. An integrated sensor option is available along with a wide choice of Xitanium drivers for flexible drive & control solutions.

  • Supply voltage 240VAC external driver
  • Excellent color consistency of 3 SDCM
  • High efficiency 139lm/W
  • Dimensions 595x595x8.8mm
  • Long life >50,000 hours
  • Power consumption 25.2W Typ.
  • Low glare UGR19
  • Choice of colour temperatures
  • High CRI >80
  • Radiation angle 80°

Fortimo_LED_Panel_6060_TPA_MD3 PDF

Fortimo 600x600mm Edgelit LED panels

Fortimo LED Light Panel

In addition to the high efficiency Fortimo LED Panels designed to integrate into suspended ceiling grids we offer the master connect version with built in sensor. The ultra-slim design facilitates easy installation and the panels are designed to meet office illumination standards offering excellent performance  and high quality of light. A wide choice of Xitanium drivers for flexible drive & control is available.

  • Supply voltage 240VAC external driver
  • Excellent color consistency of 3 SDCM
  • High efficiency 151lm/W
  • Dimensions 595x595x8.8mm
  • Long life >50,000 hours
  • Power consumption 25.2W Typ.
  • Low glare UGR19
  • Choice of colour temperatures
  • High CRI >80
  • Radiation angle 80°

Fortimo_HE_BL_Panel_6060_MC_MD3 PDF

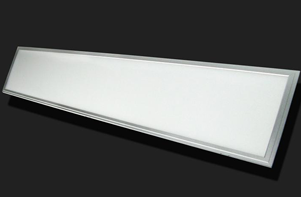

PLPW-1195x295 Edgelit

Designed for recessed ceiling lighting the PLP1195x295 is easily installed into a 1200x300mm suspended ceiling grid system.
The panel is constructed with LED emitters on all 4 sides for a bright and even illumination. A choice of power ratings is available and panels are instant start, no flicker & no noise.

  • Supply voltage 240VAC external driver
  • Dimensions 1195x295x14mm
  • Long life >40,000 hours
  • Power consumption 25W to 45W
  • Low glare
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

PLPE1195x295 PDF

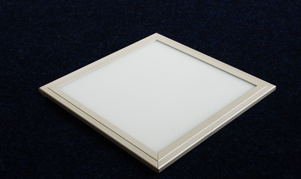

PLPW-300x300 Edgelit

Designed for area lighting the PLPW300x300 is a slim compact panel designed to provide bright and even illumination and is offered as a replacement to traditional fluorescent lamps. A choice of power ratings is available and panels are instant start, no flicker & no noise.

  • Supply voltage 240VAC external driver
  • Dimensions 300x300x12mm
  • Long life >40,000 hours
  • Power consumption 11W
  • Low glare
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

PLPW300x300 PDF

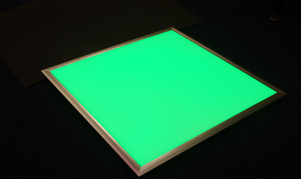

PLPW-595-RGB Edgelit

The PLPW595x595RGB full colour RGB LED light panel is designed for mood lighting and can be easily fitted into standard fluorescent grid trays in suspended ceilings. This edge lit LED light panel is an ultra thin and offers a wide range of colour lighting effects.Choice of drive & control inc. WiFi, RF and DM.

  • Supply voltage 240VAC external driver
  • Dimensions 595x595x12mm
  • Long life >40,000 hours
  • Power consumption 36W
  • Low glare
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

GL-45 Backlit Series

600x600 Backlit LED Light panel

The GL45 series are 45W rated LED light panels and utilise backlighting LED technology to produce high luminous output with a very even and consistent appearance. A choice of power ratings is available and panels are instant start, no flicker & no noise.

  • Supply voltage 240VAC external driver
  • Dimensions 598x598x55mm
  • Long life >40,000 hours
  • Power consumption 45W
  • Low glare
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

GL-45 Backlit PDF

GL-100 Backlit Series

1200x600 backlit LED panel

The GL100W series are 100W rated LED light panels and utilise backlighting LED technology to produce high bright, even and consistent illumination.A choice of power ratings is available and panels are instant start, no flicker & no noise.

  • Supply voltage 240VAC external driver
  • Dimensions 1195x596x55mm
  • Long life >40,000 hours
  • Power consumption 100W
  • Low glare
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

GL-100 Backlit PDF
