We offer a range of miniature OLED graphic displays in an ultra-thin lightweight construction for use in applications where size & space is at a premium. Applications include Hand held instruments, Wearable electronics, Personal care and Medical instruments. Features include:
fast response times, wide viewing angle, no backlight requirement due to OLED being an emissive technology, High Brightness, High Contrast Ratio, Extended operating Temperatures, Low Power Consumption, Sunlight Readable

Miniature OLED

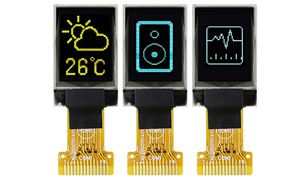

WEO004864A is an ultra thin miniature COG Graphic PMOLED display comprising of 48x64 dots with diagonal size 0.71 inch. This portrait mode module is suitable for wearable devices, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. With dimensions of 13.90 × 22.0 mm and Active Area 10.54×14.70 mm the display has SSD1306 controller IC and I2C interface.

Dual Colour Miniature OLED

WEA012864MX is a COG 0.96" Dual Color OLED with PCB board module. The display has built in SSD1306 IC, supports I2C interface, 1/64 driving duty. Supply voltage
for Logic is 5V with optional 3.3V conversion circuit. PCB dimensions are 27.3 × 27.3 mm with mounting holes. The standard colour is yellow/sky blue. This OLED module is suitable for smart home applications, medical devices, smart control, meters, etc.

Miniature OLED Selector Guide PDF

Circular Miniature OLED

WEO128128D-CTP circular graphic OLED with capacitive touch screen on module comprises of a Ø1.18" circular display with resolution 128x128 dots. This module has built in SSD1327 IC and supports 4-line SPI and I2C interface with 3V supply voltage. The display has built in IT7259 touch panel IC on module, which supports I2C interface, one detect point for capacitive touch screen. Applications include smart home, intelligent technology devices, energy systems, communication systems, medical instruments, etc.

Display Format Picture Model No. Structure Size Outline Dimension (mm) Thickness Active Area (mm) Interface Voltage Built-in Controller Colours Connection
64x32 WEO006432A COG 0.49 14.5 x 11.6 1.26 11.18 x 05.58 I²C 3V SSD1306BZ Sky Blue/White Hot bar solder (also avail on PCB)
64x48 PO6448BO COG 0.66 18.46 x 18.10 1.45 13.42 x 10.06 8-bit Parallel, SPI, I²C 3V SSD1306 Light Blue Hot bar solder
64x48 WEO006448A COG 0.66 18.46 x 18.10 1.3 13.42 x 10.06 6800, 8080, SPI, I²C 3V SSD1306BZ Yellow, White & Sky Blue Hot bar solder (also avail on PCB)
96x32 WEO009632B COG 0.68 19.8 x 12.32 1.21 16.298 x 5.418 6800, 8080, SPI, I²C 3V SSD1305 White, Yellow FPC/ZIF & Hot bar solder
48x64 WEO004864A COG 0.71 13.9 x 22 1.26 10.54 x 14.7 I²C 3V SSD1306BZ White, Yellow, White & Sky Blue Hot bar solder (also avail on PCB)
96x16 WEO009616A COG 0.84 29.1 x 9.2 1.3 21.104 x 3.504 I²C 3V SSD1306BZ White & Sky Blue Hot bar solder (also avail on PCB)
128x32 WEO012832D COG 0.91 30 x 11.5 1.45 22.384 x 5.584 SPI 3V SSD1306BZ Yellow, White & Sky Blue Hot bar solder (also avail on PCB)
128x32 WEO012832F COG 0.91 30 x 11.5 1.45 22.38 x 5.58 I²C 3V SSD1306BZ Yellow, White & Sky Blue Hot bar solder
128x32 PO12832DO-2 COG 0.91 30.00 x 11.50 1.45 22.384 x 5.584 4 wire SPI 3V SSD1306 Blue FPC/ZIF
96x64 WEO09664A COG 0.95 24.9 x 22.95 1.65 19.946 x 13.418 6800, 8080, SPI, I²C 3V SSD1305Z Yellow Hot bar solder
96x64 PO9664FO-2 COG 0.95 24.80 x 22.42 1.33 20.135 x 13.42 8-bit Parallel, SPI 3V SSD1331Z 65k colours FPC/ZIF
128x64 WEO012864C COG 0.96 26.7 x 19.26 1.65 21.74 x 10.86 6800, 8080, SPI, I²C 3V SH1106G Yellow, White & Sky Blue Hot bar solder/ZIF
128x64 WEO012864D COG 0.96 26.7 x 19.26 1.26 21.738 x 10.858 6800, 8080, SPI, I²C 3V SSD1306Z Yellow, Blue, White Hot bar solder/ZIF (also avail on PCB)
128x64 WEO012864M COG 0.96 26.7 x 19.26 1.65 21.744 x 11.204 6800, 8080, SPI, I²C 3V SSD1306BZ Dual colour Yellow & Sky Blue Hot bar solder
128x32 WEO012832E COG 1.04 33.4 x 14.5 2.35 25.58 x 6.38 6800, 8080, SPI, I²C 3V SSD1306BZ Yellow, Green, Red, Blue, White & Amber Hot bar solder (also avail on PCB)
96x64 WEO09654B COG 1.1 29.02 x 22.5 1.65 29.02 x 22.5 6800, 8080, SPI, I²C 3V SSD1327 Yellow (other colours in planning) Hot bar/FPC/ZIF/PCB Mount
128x128 WEO128128B COG 1.18 36.98 x 41.23 2.05 30 x 30 6800, 8080, SPI, I²C 3V SSD1327ZB Yellow, White & Sky Blue FPC/ZIF
50x16 WEG005016A COB 1.26 58 x 32 10 29.96 x 11.16 6800, 8080, SPI 5V WS0010 Yellow, Green, Red, Blue, White PCB Pins
128x64 WEO012864L COG 1.26 34.5 x 23 1.65 29.42 x 14.2 6800, 8080 3V SH1106G Yellow Hot bar solder/ZIF (also avail on PCB)
160x128 PO160128FC-1A COG 1.45 35.8 x 30.8 1.7 28.78 x 23.024 8/16bit 6800/8080-series parallel, SPI 3V SEPS525F 262k colours FPC/ZIF
128x128 WEO128128A COG 1.5 33.8 x 36.5 2.05 26.86 x 26.86 6800, 8080, I²C 3V SSD1327ZB Yellow, White & Sky Blue FPC/ZIF
128x64 WEO012864B COG 1.54 45.24 x 29.14 2.05 35.056 x 17.52 6800, 8080, SPI, I²C 3V SSD1305Z Yellow, Green, Red, Blue, White & Amber FPC/ZIF
128x64 PO12864GAO COG 1.54 42.04 x 27.22 1.45 35.052 x 17.516 8-bit parallel, 4-wire SPI, I²C 3V SSD1309 White, Yellow, Blue FPC/ZIF
128x64 WEO012864Y COG 1.54 45.24 x 29.14 2.01 35.05 x 17.51 6800, 8080, SPI, I²C 3V SSD1309 White, Yellow, Blue FPC/ZIF
128x64 WEO012864A COG 1.54 45.04 x 27.22 1.45 35.05 x 17.51 6800, 8080, SPI, I²C 3V SSD1309ZC White, Yellow, Amber, Green FPC/ZIF
128x64 WEO012864F COG 1.6 41.8 x 27.9 1.8 36.45 x 18.21 6800, 8080, SPI 3V SSD1325Z2 Yellow FPC/ZIF
76x16 WEG007616A COB 1.7 55.7 x 32 11 47.7 x 11.1 6800, 8080, SPI 5V WS0010 Yellow, Green PCB Pins
128x32 WEO012832G COG 1.71 50.5 x 15.75 2.01 42.22 x 10.54 SPI/I²C 3V SSD1307ZD White (other colours in planning) FPC/ZIF
160x128 PO160128DO COG 1.77 42.70 x 33.40 2.01 35.015 x 28.012 8/9/16/18bit 6800/8080-series parallel, SPI 3V SSD1353 262k colours FPC/ZIF
160x128 WEO160128A COG 1.92 35.4 x 48.8 1.41 28.908 x 39.34 6800, 8080, SPI, I²C 3V SH1108 6800/8080 8-bit parallel, I²C, 4-Wire SPI 0.3" FPC
128x32 WEO012832K COG 2 59.02 x 18.86 1.41 50.535 x 10.695 6800/8080 8-bit parallel, I²C, 4-Wire SPI 3V SSD1315 White Hot bar solder
256x64 WEO0025664A COG 2.08 60.5 x 19 1.6 53.18 x 14.78 6800, 8080, SPI, I²C 3V SSD1362Z White (4bit Greyscale) FPC/ZIF/Hot bar solder
128x32 WEO012832A COG 2.23 62 x 24 2.35 55.018 x 13.098 6800, 8080, SPI, I²C 3V SSD1305Z White, Yellow, Blue ZIF/FPC
128x32 WEP012832A*
Also avail with PCT touch		 COG 2.23 66.5 x 35 9 55.018 x 13.098 6800, 8080, SPI, I²C 3V SSD1305Z White PCB Pins
100x8 WEG01008A COB 2.37 2.23 10 59.95 x 6.35 6800, 8080, SPI 5V WS0010 Yellow, Green, Red, Blue, White PCB Pins
100x16 WEG010016A COB 2.4 80 x 36 10 59.95 x 11.15 6800, 8080, SPI 5V WS0010 Yellow, Green, Red, Blue, White PCB Pins
100x16 WEG010016C COB 2.4 85 x 36 10 59.95 x 11.15 6800, 8080, SPI 5V WS0010 Yellow, Green, Red, Blue, White PCB Pins
100x16 WEG010016D COB 2.4 85 x 30 10 59.95 x 11.15 6800, 8080 5V WS0010 Yellow, Green, Red, Blue, White PCB Pins
100x16 WEG010016E COB 2.4 84 x 44 10 59.95 x 11.15 6800, 8080 5V WS0010 Yellow, Green, Red, Blue, White PCB Pins
128x64 WEO012864G COG 2.42 60.5 x 37 2.15 55.01 x 27.49 6800, 8080, SPI, I²C 3V SSD1309 White, Yellow, Sky Blue, Green FPC/ZIF
128x64 WEO012864G-CTP COG 2.42 66.8 x 41.3 3.71 55.01 x 27.49 6800, 8080, SPI, I²C 3V SSD1309 White, Yellow, Sky Blue, Green FPC/ZIF
100x16 WEG0110016J COB 3.84 122 x 44 10 95.94 x 17.86 6800, 8080, SPI 3V WS0010 Yellow, Green, Blue, White PCB Bins
