RF Mini-Controllers

The M series RF remote series transmitters offer  a wide range of LED control functions. A choice of 8 hand-held remote controllers are available with colour wheel or push button format. Control options:

  • Dimming
  • Colour Temperature CT (PW/WW)
  • Colour Temperature CCT (CW/NW/WW)
  • RGB Colour mix
  • RGBW Colour mix
  • Receiver drivers LT-M3-3A or LT-M4-5A

Mini-Controller Selector Guide PDF

Mini-Controller Datasheet PDF

Link to wall mount Touch Controllers

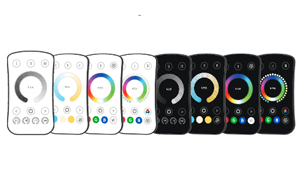

RF Mini-Controllers Single Zone

The M series RF 2.4GHz single zone remote transmitters offer  a wide range of LED control functions. A choice of 8 hand-held remote controllers are available with colour wheel format. Control options:

  • M1 Dimming
  • M2 Colour Temperature CT (PW/WW)
  • M4 RGBW Colour mix
  • M5 RGB+CT Colour mix
  • Use in conjunction with P5 receiver/driver

Mini-Controllers Single Zone PDF

Link to RF Receiver/Drivers

RF Mini-Controllers Multizone

The M series RF 2.4GHz multizone remote transmitters offer  a wide range of LED control functions. A choice of 8 hand-held remote controllers are available with colour wheel format. Control options:

  • M1C Dimming
  • M2C Colour Temperature CT (PW/WW)
  • M4C RGBW Colour mix
  • M5C RGB+CT Colour mix
  • Use in conjunction with P5 receiver/driver

Mini-Controllers Multi-Zone PDF

Link to RF Receiver/Drivers

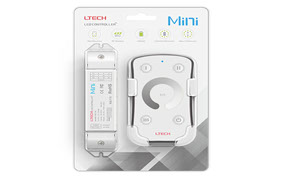

M1+M3-3A & M1+M4-5A Dim Control

The LT-M1+M3-3A and M1+M4-5A are 3 and 4 channel Dimming LED controllers which utilise advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduced interference by obstacles.

  • M1+M3-3A Dimming 3-Channel 3A/Ch CV
  • M1+M4-5A Dimming 4-Channel 5A/Ch CV
  • Low Voltage operation 12 - 24VDC
  • 4096 greyscale for advanced control
  • 40-50 metre transmission distance
  • Receiver driver LT-M3-3A or LT-M4-5A

M1+M3-3A PDF

M1+M4-5A PDF

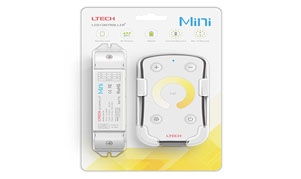

M2+M3-3A & M2-M4-5A CT Control

The LT-M2+M3-3A and M2+M4-5A are 2-channel Colour Temperature LED controllers which utilise advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduced interference by obstacles.

  • M2+M3-3A CT control 3A/Ch CV
  • M2+M4-5A CT control 5A/Ch CV
  • 2-Channel Constant Voltage
  • Low Voltage operation 12 - 24VDC
  • 4096 greyscale for advanced control
  • 40-50 metre transmission distance
  • Receiver driver LT-M3-3A or LT-M4-5A

M2+M3-3A PDF

M2+M4-5A PDF

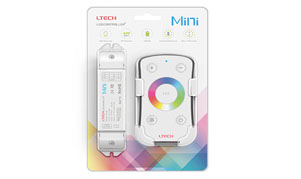

M3+M3-3A & M3+M4-5A RGB Control

The LT-M3+M3-3A and M3_M4-5A are 3-channel RGB LED controllers which utilise advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles.

  • M3+M3-3A RGB 3-channel 3A/Ch CV
  • M3+M4-5A RGB 3-channel 5A/Ch CV
  • Low Voltage operation 12 - 24VDC
  • 4096 greyscale for advanced control
  • 40-50 metre transmission distance
  • Receiver driver LT-M3-3A or LT-M4-5A

M3+M3-3A PDF

M3+M4-5A PDF

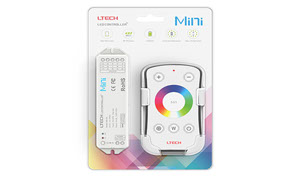

M4+M3-3A RGBW Controller

The LT-M4+M4-3A and M4+M4-5A are 4-channel RGBW LED controllers which utilise advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles.

  • M4+M4-3A RGBW 4-channel 3A/Ch CV
  • M4+M4-5A RGBW 4-channel 5A/Ch CV
  • Low Voltage operation 12 - 24VDC
  • 4096 greyscale for advanced control
  • 40-50 metre transmission distance
  • Receiver driver LT-M4-3A or LT-M4-5A

M4+M4-3A PDF

M4+M4-5A PDF

M6+M4-5A RGBW Controller

The LT-M6+M4-5A is a 4-channel RGBW LED controller which utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles.

  • M6+M4-3A RGBW 4-channel 3A/Ch CV
  • M6+M4-5A RGBW 4-channel 5A/Ch CV
  • Low Voltage operation 12 - 24VDC
  • 4096 greyscale for advanced control
  • 40-50 metre transmission distance
  • Receiver driver LT-M4-3A or LT-M4-5A

M6+M4-3A PDF

M6+M4-5A PDF

M8+M3-3A RGBW Controller

The LT-M8+M4-5A is a 4-channel RGBW LED controller which utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances and reduce interference by obstacles.

  • M8+M4-5A RGBW 4-channel 5A/Ch CV
  • Low Voltage operation 12 - 24VDC
  • 4096 greyscale for advanced control
  • 40-50 metre transmission distance
  • Receiver driver LT-M4-5A

M8+M4-5A PDF

SPI16S+M16S SPI Controller

The LT-SPI16S+M16S is a multi-channel digital RGB LED controller designed to control each LED pixel using SPI protocol in strips & fixtures. The system utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances.

  • RGB pixel colour control
  • 3-Channel SPI Constant Voltage
  • Low Voltage operation 5 - 24VDC
  • Supports a wide range of SPI IC types
  • 40-50 metre transmission distance
  • Receiver driver LT-SPI16S

SPI16S+M16S PDF

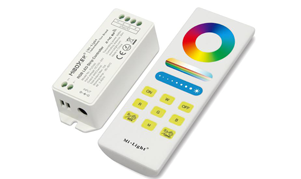

FUT044-88 RGBW Controller

The FUT044A-88 comprises of  a multi-channel digital hand held LED RF controller supplied with compatible receiver/driver. The system utilises advanced RF remote control, wireless signal with high output to achieve long transmission distances.

  • RGBW pixel colour control
  • 4-Channel PWM Constant Voltage output
  • Low Voltage operation 12 - 24VDC
  • Delay OFF timer function
  • 30 metre transmission distance
  • Receiver driver FUT-044A

FUT series Receiver/Drivers PDF

 Remote Controls PDF

WL-Box1 RF Gateway to Wifi

The WL-Box1 facilitates a bridge connection from RF 2.4GHz to Wifi wireless networks allowing connection of Smartphone Apps
 The  WL-Box1 supports third party voice controls Amazon Alexa and Google Assistant.

  • Supply voltage 5V micro USB
  • Low power consumption
  • Low susceptibility to interference
  • 30 metre transmission distance
  • Compatible with FUT series RF products
