Smart Displays

The "Winstar Smart Display Series" is an innovative display product from leading display manufacturer Winstar and offers shorter time to market and ease of implementation for a range of TFTs and OLED displays. The current range includes CAN and RS485 protocols as well as an entry-level UART interface. Our abilities to mix-and-match different LCDs with our CAN TFT platform are limitless. Wide-temperature options are available to support control applications in harsh operating conditions such as automotive, marine, power generation and oil-and-gas.

Colour TFT Smart Displays

The “Smart Display solution” comes with Winstar standard display modules and UI objects to get projects off the ground quickly. If customers need custom UI objects support, our engineers can send over a new set of UI objects quickly.

The user interfaces (UI) are defined as objects.
Just adopt scripts to control on/off or give a value for objects.
Customers do not need to understand the graphic layers.
Built in flash memory, font storage and Object Dictionary data.
Get started quickly, suitable for fast and easy integration of a HMI into any application.
Communication interfaces: CAN/UART/I2C/SPI/USB/WIFI/BT

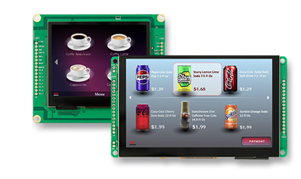

UART TFT Smart Display

The WINSTAR UART Smart Display is a high-performance solution designed for engineers and developers, allowing you to easily create various UI widgets. This UART TFT display integrates advanced technology for seamless communication and visual output.

Real-Time simulation
Convenient Design, Zero code, drag & drop
Rich Widgets: Access customizable widgets
Designed with STM32F series MCU and Support tools
Supports TouchGFX, LVGL, QT and Embedded Wizard GUI frameworks for flexible HMI development
Diverse Size Options: Multiple display sizes available to meet various requirements.

Dustproof Cap Touch TFT Smart Display

WINSTAR 7-inch Smart Display with IP54-rated dustproof and water-resistant housing is designed for easy integration and reliable performance in industrial environments. Featuring a capacitive touch panel and CAN bus communication, the display is ideal for indoor and controlled-environment applications.

7-inch display with 1024x600 resolution and IPS technology for wide viewing angles (85°/85°/85°/85°).
IP54 rating: Dust and water-resistant, ideal for industrial applications.
Custom CAN ID protocol
Pre-defined UI objects for fast development
No coding required for basic interactions
Projected Capacitive touch panel for precise interaction.

WL0F0007000A8GAADSK00 PDF

CANopen TFT Series

WINSTAR Smart Display CAN Series for CAN bus communication Interface, provides CANopen & Custom CAN ID protocols. It offers an out-of-the-box experience to lower development costs and speed time-to-market. We offer LCD/TFT in a range of display sizes along with IPS TFT display for wider viewing angle.

The user interface has well defined as objects
CAN bus Interface.
Get started quickly, suitable for fast and easy integration of a HMI into any application.
Just adopt scripts to control on/off or give a value for objects
Design the UI without writing a line of code by WINSTAR GUI builder!

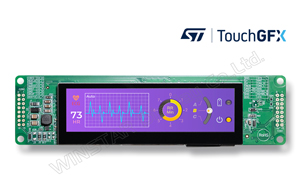

WINSTAR Smart Display products are designed with ST controller which supports ST development tools like TouchGFX and STM32CubeIDE

RS485 Modbus Smart Display

WINSTAR Smart Display RS485 Series offers an out-of-the-box Modbus development experience, providing benefits to lower your development costs and speed up your time-to-market expectations.

The 485TFT is pre-loaded with standard UI objects to enable speedy design.
Communication ranges up to a hundred feet rather than just a few inches
You can add more displays into the daisy chain which increases the product extendibility.
Optional IPS TFT display with wider viewing angle
Design the UI without writing a line of code using WINSTAR GUI builder
Coding skill is NOT A MUST since the user interface is well defined as objects
Get started quickly! Perfect for fast and easy integration of a HMI for literally any application

5" CAN bus TFT Smart Display

WL0F00050000FGAAASA00 is a 5” Smart Display_CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. This 5” Smart Display is an easy-to-use product which allows you to develop projects rapidly in cost-effective way. The Display can be used on multiple host (HOST) platforms. such as Computer (with USB2CAN Dongle) , MCU, Raspberry Pi (with PiCAN2).

Smart Display Selector guide PDF

Smart Display GUI builder Video

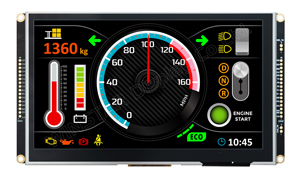

7" CAN bus TFT Smart Display

WL0F0007000A8GAAASA00 is a 7" Smart Display CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. This 7" Smart Display is an easy-to-use product which allows customers to develop projects rapidly in cost-effective way. The Display can use computer with USB2CAN dongle or Raspberry Pi interface (PiCAN2) as HOST platform.

Why choose CAN BUS interface

The CAN (Controller Area Network) communication interface was first developed by Bosch in the 1980s to respond to the increasing number of electronic devices used in new cars. The CAN bus can connect and control the entire control system through a simple serial interface.

CAN Open

CAN Open is a communication protocol and device profile specification for embedded systems which is common in passenger vehicles, industrial automation, mechanical controls, elevator & escalator controls and electronic equipment for aviation and navigation. Winstar CAN TFT series includes built-in object dictionary on module
