Bluetooth Mesh

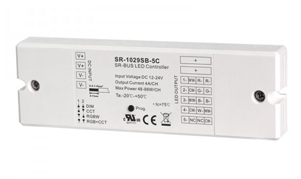

SR-1029-SB 4-in-1 RF + Bluetooth

The SR-1029-SB-5C 4-in-1 smart LED driver adopts Bluetooth 5.0 Mesh technology and may be controlled via the "Easy Things" App on iOS or Android devices directly through the Bluetooth connection without requiring a gateway. The  4-in-1 driver allows dimming, CT control, RGB, RGBW and RGB+CT control. Voice control of 3rd party products is also facilitated.

• Input voltage 12-24VDC

• RF and Bluetooth control

• Constant Voltage 5-channel 4A/Channel

• Sync control for up to 8 units
• Control via Amazon Alexa & Google Home
• Up to 30metres transmission distance


SR-1029-SB-5C PDF

FUT-W series Bluetooth+WiFi

The FUT-W series WiFi+Bluetooth RF 2.4GHz controller/drivers comprise of  5 models designed to control Dimming, CT, RGB, RGBW and RGB+CT. Controllers may be controlled via smartphone App, RF wall mount touch panels, 3rd party voice controls & compatible hand-held remotes.

• Input voltage 12V to 24VDC Output 12A
• FUT036W 1-channel output  Dimming

• FUT035W 2-channel output  CT

• FUT037W 3-channel output  RGB

• FUT038W 4-channel output RGBW

• FUT039W 5-channel output RGB+CT

• Transmission distance 30 metres

• No Gateway required

• Expand scheme with PA series repeaters

• Supports Smartphone App & 3rd party voice control


FUT039W PDF

Compatible RF Controllers  PDF

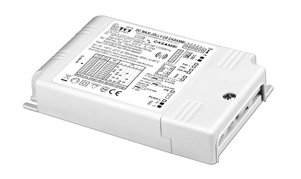

Casambi

We offer a range of innovative wireless light management solutions based on Casambi’s Bluetooth Low Energy (BLE) technology. Casambi is integrated into a range of Tridonic and TCI Dimmable LED drivers. The Wireless system offers an interconnected and interoperable solution for the wireless connection of luminaires.

• Integrated wireless CASAMBI receiver

• Wireless Casambi receivers
• Wireless control Android / IOS device

• Choice of power ratings
• Fixed & adjustable constant current o/p

• Supports DT8 dual channel CCT tuning

View Products

LM-100-G2B3 Tuneable CV Drivers

The LM-100-G2B3 is a 2-channel constant voltage 100W Bluetooth Low Energy (BLE) wireless dimmable drivers featuring mesh technology. Designed for tuneable colour temperature control, drivers may easily be controlled via the Tuya App on iOS or Android devices through Bluetooth connection.

• AC mains input 100 - 240VAC

• Output 2-channels 24V 4.17A
• Short circuit, over current protection

• Over temperature protection

• Compliant to international standards

• 292×43×30mm(L×W×H)


LM-100-24-G2B3 PDF

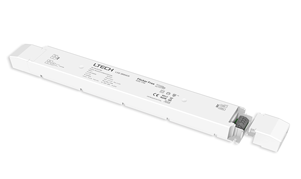

LM-150-G1B2 CV LED drivers

The LM-75 and LM-150-G2B2 are constant voltage Bluetooth Low Energy (BLE) wireless dimmable drivers featuring mesh technology.  Drivers may easily be controlled via the Tuya App on iOS or Android devices through Bluetooth connection.

• AC mains input 100 - 240VAC

• 75W Output 24V 3.125A
• 150W Output 12V 12.5A or 24V 6.25A
• 150W Mains "push" dimming
• Connection by push terminal block


LM-75-24-G1B2 PDF

LM-150-12-24-G1B2 PDF

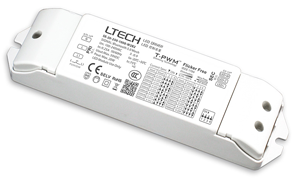

SE-20 Tuneable CC LED Driver

The SE-20-250-1000-W2B2 is a 20W 2-channel constant current Bluetooth 5.0 SIG mesh dimmable driver. Drivers may easily be controlled via the L-Home App on iOS or Android devices through Bluetooth connection.

• AC mains input 100 - 240VAC

• CC output 250mA to 1000mA
• Output current set by DIP switch
• Mains "push" dimming

• Connection by push terminal block

• 167×41×32mm(L×W×H)


SE-20-250-1000-W2B2 PDF

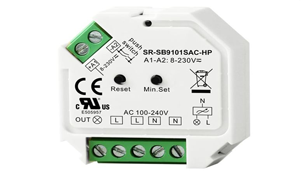

SR-SB9101 Bluetooth AC Dimmer

The SR-SB9101SAC-HP is a bluetooth connected AC mains dimmer module facilitating control of LED lamps and drivers. The module may easily be controlled via the Easy Things App on iOS or Android devices through Bluetooth connection.

• AC mains input 100 - 240VAC

• Output 1-channels 400W max
• No gateway required
• Mains "push" dimming

• Connection by push terminal block

• May be Installed into a standard 86x86mm wall box


SR-SB9101SAC-HP PDF
