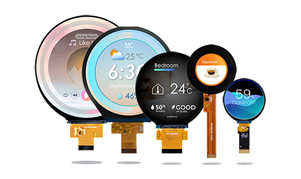

TFT Display Modules provide high resolution, vibrant, full colour display panels with an option of controller boards and touch panel overlay. Now an affordable option for a wide range of applications we offer a range of display sizes and formats.

 Standard TFT

Winstar standard TFT LCD display modules are available from 1.77“ to 10.4“.  These modules include options of  panel only or LCM with controller board, and wide operating temperatures of -20°C to +70°C or -30°C to +80°C.

Winstar TFT displays are available in a range of resolutions including QVGA (320 x 240), WQVGA (480x272), VGA (640x480), WVGA (800x480), 640x320, 1024x600, XGA (1024x768) and WXGA(1280x800).

Many of Winstar’s standard TFTs have  low minimum order quantity and are suitable
for long-term design-in to industrial
applications

Colour TFT Selector Guide PDF

 IPS TFT

In Plane Switching (IPS) TFT LCD Modules offer wide viewing angle and great colour reproduction. Winstar’s IPS TFTs range from mini 0.96” to 10.1” diagonal, delivering improved performance in a range of demanding applications.

We also offer higher brightness versions for some models along with optional touchscreens.


View IPS TFT Displays

 TFT Clever System

Winstar “M” Series is a new TFT solution to help to upgrade from existing mono displays to colour TFT.  The WFxxM module is an all-in-one system so there is no need to redesign
your TFT firmware and circuit.
The system integrates Switch, UART, SPI, USB, PWM functions reducing BOM . The free  GUI can save cost and accelerate the product
development process.










 Bar TFT

The mainstream aspect ratio of the TFT LCD panels is 4:3 or 16:9, for some applications, a bar type shape or "letterbox" format of display panel can be more suitable for the application. Winstar Bar Type TFT LCD displays are perfect for industrial equipment, automotive applications, server system, POS system, dynamic information displays and advertising displays. “Letterbox” format TFTs are available from 3.9”~12.3”.
This wide aspect ratio format offers a choice of top and bottom view directions, or O-Film.
WF39 (3.9” diagonal, 480x128 resolution) family are suitable for 1U rack applications.

View Bar TFT Displays

 Q series TFT with controller board

 Winstar’s Q Series Family (TFT Panels with TFT LCD Controller Board) are available in
3.5”, 4.3”, 5.0” 5,2”(bar), 5.7”, 7”,8” 10.2” sizes and integrates a common 36 pin-out connector and SSD1963 graphics controller board.
The Q Series are suitable for for both 8 bit and 16 bit parallel interface. With built in backlight driver IC, pins 33~36 are defined defined as the backlight supply.
5.7”, 7.0”, 8.0” and 10.2” models feature “Sleep Mode” to close BIAS (VGH, VGL, AVDD) low power consumption mode.
Resistive and Capacitive Touch Screen options are available.


 Capacitive Touch

Capacitive Touch (PCAP) is available in
a wide range of standard parts. We now offer optically bonded cover lens with I2C or USB interface to the PCAP controller.
A custom cover lens attracts a small NRE and typically an MOQ of only 1000 units.







 SPI Interface

For the added flexibility of being able to   communicate direct from your micro, we offer a range of small size displays in QVGA (240x320) resolution and below, in display sizes from 0.96” to 3.5” that accept an SPI signal.

In addition, the “M”series” (Clever System) accepts SPI as well as UART communication.




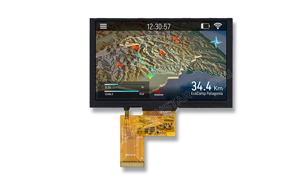

High Brightness Displays

Winstar High Brightness TFT displays are ideal for outdoor applications requiring sunlight readable information.
Featured brightness is from 800 to 1100 nits (cd/m2).

High brightness models are also available with resistive and capacitive touch panel. (Please note the brightness will be reduced with the addition of touch panel or
O-Film.)
Sizes include 3.5“, 4.3”, 5.7”,7" and 10.1”.

Wide Temperature TFT

Active Matrix TFT Colour LCD Display is becoming more pervasive for indoor or outdoor applications. The demand for wide temperature TFT LCD is growing in many diverse environments.
Winstar Display offers a full range of wide temperature TFT LCD modules including 3.5", 4.3", 5", 5.7", 7", 8", 9", 10.2" and 12.1”.

Operating temperature can be from -30°C to +80 °C (up to 85 °C for some models).



Optical Bonding


Optical Bonding reduces reflections and refractions. A variety of  cover materials are used, offering anti-vandal & scratch resistance ensuring durability and ruggedness.

Optical bonding also increases contrast ratio, and resistance to impact  vibration and moisture. It also prevents condensation
between the layers.

O-Film

Many industrial applications require wider viewing angle TFTs, Winstar O-Film TFT technology offers a low cost solution to overcoming greyscale inversion in industrial applications.








HDMI Interface

Winstar offers 5.0", 7.0", 10.1" and 5.2" bar TFTs with HDMI interface. These can be directly driven from Raspberry Pi.
You can alsouse this display with any embedded system which supports HDMI signal output.






Display Format Picture Model Number Size (") Outline Dimension (mm) Active Area (mm) View Direction Interface IC Part No. Control Board Brightness (cd/m ) Touch Screen Option Temperature (°c) O-Film Option
80x160 WF0096A 0.96 13.5 x 27.95 10.8 x 21.696 IPS SPI ST7735S No 500 No -20~70 N/A
128x160 WF18F 1.77 34 x 45.83 28.03 x 35.04 6H MCU ST7735S No 500 No -20~70
240x320 WF24F 2.4 42.72 x 60.26 36.72 x 48.96 6H MCU ILI9341 No 200 No -20~70
240x320 WF24H 2.4 42.72 x 60.26 36.72 x 48.96 6H MCU ILI9341 No 500 No -20~70
240x320 WF24K 2.4 42.72 x 60.26 36.72 x 48.96 6H SPI Himax8347-I No 500 No -20~70
240x320 WF24L 2.4 42.72 x 60.26 36.72 x 48.96 IPS SPI, MCU ILI9341 No 500 No -20~70 N/A
240x320 WF28E 2.8 50 x 69.2 43.2 x 57.6 6H MCU ILI9341 No 500 RTP -20~70
240x320 WF28G 2.8 50 x 69.2 43.2 x 57.6 6H SPI Himax8347-I No 500 No -20~70
240x320 WF28JS 2.8 50.5 x 69.7 43.2 x 57.6 IPS SPI, MCU ILI9341V No 1000 No -20~70 N/A
240x320 WF28J 2.8 50.5 x 69.7 43.2 x 57.6 IPS SPI, MCU ILI9341V No 500 No -20~70 N/A
240x320 WF32C 3.2 55.04 x 77.6 48.6 x 64.8 6H MCU ILI9341 No 180 RTP -20~70
320x480 WF35H 3.5 52.96 x 81.34 48.96 x 73.44 6H MCU ILI9488 No 320 No -20~70
320x240 WF35LT 3.5 76.9 x 63.9 70.08 x 52.56 12H RGB (SPI Option) -- No 420 RTP, PCAP -20~70 Yes
320x240 WF35LS 3.5 76.9 x 63.9 70.08 x 52.56 12H RGB (SPI Option) -- No 1100 RTP, PCAP -20~70
320x240 WF35M 3.5 100 x 66.44 70.08 x 52.56 12H SPI, UART PIC24 Yes 420 RTP -20~70
240x320 WF35N 3.5 62.9 x 86.54 52.28 x 71.04 VA Glass MCU ST7511 No 500 No -30~80
320x240 WF35P 3.5 93.5 x 63.44 70.08 x 52.56 12H MCU RA8875 Yes 420 RTP, PCAP -20~70
320x240 WF35Q 3.5 93.5 x 63.44 70.08 x 52.56 12H MCU SSD1963 Yes 420 RTP, PCAP -20~70
320x240 WF35R 3.5 76.84 x 63.84 70.08 x 52.56 12H SPI, MCU, RGB SSD2119 No 400 No -20~70
320x240 WF35T 3.5 76.9 x 63.9 70.08 x 52.56 12H RGB -- No 420 No -30~80
320x480 WF35U 3.5 54.5 x 83 48.96 x 73.44 IPS MCU ILI9488 No 600 RTP, PCAP -20~70 N/A
240x320 WF35W 3.5 61.8 x 88.5 53.28 x 71.04 IPS MCU HX8347-A No 1000 No -30~80 N/A
320x240 WF35XT 3.5 76.84 x 63.84 70.08 x 52.56 IPS RGB ST7272A No 500 No -20~70 N/A
320x240 WF35XS 3.5 76.84 x 63.84 70.08 x 52.56 IPS RGB ST7272A No 1000 No -20~70 N/A
320x240 WF35Y 3.5 76.84 x 63.84 70.08 x 52.56 12H RGB -- No 420 RTP -20~70
480x128 WF39BT 3.9 105.5 x 37 95.04 x 25.34 6H RGB HX8278-A No 500 RTP, PCAP -20~70 Yes
480x128 WF39BS 3.9 105.5 x 37 95.04 x 25.34 6H RGB HX8278-A No 1000 No -30~80
480x128 WF39C 3.9 105.5 x 37 95.04 x 25.34 12H RGB HX8278-A No 500 RTP, PCAP -20~70
480x128 WF39Q 3.9 122 x 44 95.04 x 25.34 12H MCU SSD1963 Yes 500 PCAP -20~70
800x480 WF40C 3.97 57.14 x 96.85 51.84 x 86.4 IPS MIPI DSI ST7701S No 600 No -20~70 N/A
480x272 WF43B 4.3 105.5 x 67.2 95.04 x 53.85 6H 8080 SSD1963 Yes 300 No -20~70
480x272 WF43E 4.3 105.5 x 67.2 95.04 x 53.85 6H RGB -- No 500 PCAP -20~70
480x272 WF43GT 4.3 105.5 x 67.2 95.04 x 53.856 12H RGB -- Option 500 RTP, PCAP -20~70
480x272 WF43GS 4.3 105.5 x 67.2 95.04 x 53.856 12H RGB -- No 1000 PCAP -20~70
480x272 WF43M 4.3 125.5 x 67.2 95.04 x 53.86 12H SPI, UART PIC24 Yes 500 RTP, PCAP -20~70
480x272 WF43P 4.3 106.7 x 83.98 95.04 x 53.856 12H MCU RA8875 Yes 350 RTP -20~70
480x272 WF43Q 4.3 106.7 x 69.6 95.04 x 53.856 12H MCU SSD1963 Yes 500 RTP, PCAP -20~70
480x272 WF43S 4.3 105.5 x 67.2 95.04 x 53.856 VA Glass RGB -- No 600 No -30~80
480x272 WF43T 4.3 105.5 x 67.2 95.04 x 53.86 VA Glass RGB -- No 500 No -30~80
480x272 WF43U 4.3 105.4 x 67.1 95.04 x 53.856 12H RGB ST7282-G4-1L No 600 PCAP -20~70
480x272 WF43VT 4.3 105.5 x 67.2 95.04 x 53.856 12H RGB ST7282-G4-1L No 500 RTP, PCAP -20~70 Yes
480x272 WF43VS 4.3 105.5 x 67.2 95.04 x 53.856 12H RGB ST7282-G4-1L No 1000 RTP, PCAP -20~70 Yes
480x272 WF43WT 4.3 105.5 x 67.2 95.04 x 53.856 IPS RGB SC7283 No 500 No -30~80 N/A
480x272 WF43WS 4.3 105.5 x 67.2 95.04 x 53.856 IPS RGB SC7283 No 1000 No -30~80 N/A
480x272 WF43Y 4.3 105.5 x 67.2 95.04 x 53.86 12H RGB -- No 500 RTP -20~70
800x320 WF46A 4.6 120.7 x 56.16 108 x 43.2 12H RGB -- No 400 No -20~70
800x480 WF50A 5 120.7 x 76.3 108 x 64.8 12H RGB -- No 420 No -20~70
800x480 WF50B 5 120.7 x 75.8 108 x 64.8 12H RGB -- No 500 PCAP -20~70
800x480 WF50BTIAGNB0 5 147 x 104 108 x 64.8 12H RGB LI6122+ILI5960 No 400 PCAP -20~70
800x480 WF50BTIFGDHTV 5 120.7 x 75.8 108.0 x 64.8 12H HDMI/Raspberry Pi TFP401 Yes 350 RTP, PCAP -20~70
720x1280 WF50DT 5 66.1 x 120.4 62.1 x 110.4 IPS MIPI DSI ILI9881C No 300 PCAP -20~70 N/A
720x1280 WF50DS 5 68.4 x 122.7 62.1 x 110.4 IPS MIPI DSI ILI9881C No 1100 No -20~70 N/A
800x480 WF50ET 5 121 x 77.4 108 x 64.8 IPS RGB HX8249-A+HX8678-C No 500 No -30~80 N/A
800x480 WF50ES 5 121 x 77.4 108 x 64.8 IPS RGB HX8249-A+HX8678-C No 1000 No -30~80 N/A
800x480 WF50FT 5 120.7 x 75.8 108 x 64.8 IPS RGB ST7262 No 500 No -30~80 N/A
800x480 WF50FS 5 120.7 x 75.8 108 x 64.8 IPS RGB ST7262 No 1000 No -30~80 N/A
800x480 WF50Q 5 120.7 x 75.8 108.0 x 64.8 12H MCU SSD1963 Yes 500 No -20~70
480x128 WF52AT 5.2 140.4 x 49.87 127.152 x 33.9072 6H RGB ST7252 No 500 RTP, PCAP -20~70 Yes
480x128 WF52AS 5.2 140.4 x 49.87 127.152 x 33.9072 6H RGB ST7252 No 1100 PCAP -20~70 Yes
480x128 WF52ASZFSDHGV 5.2 180 x 75.8 127.152 x 33.9072 O-TFT HDMI TFP401 Yes 700 No -20~70 Yes
480x128 WF52B 5.2 140.4 x 49.87 127.152 x 33.9072 12H RGB ST7252 No 500 RTP, PCAP -20~70
480x128 WF52QT 5.2 180 x 65 x 8.8 127.152 x 33.9072 6H MCU SSD1963 Yes 500 PCAP -20~70 Yes
480x128 WF52QS 5.2 180 x 65 127.152 x 33.9072 O-TFT MCU SSD1963 Yes 850 No -20~70 Yes
640x480 WF56B 5.6 126.5 x 100 112.896 x 84.672 12H TTL -- No 350 No -20~70
320x240 WF57B 5.7 160 x 109 115.2 x 86.4 12H RGB -- No 500 RTP, PCAP -20~70
320x240 WF57BTC 5.7 160 x 109 115.2 x 86.4 12H LVDS -- No 500 No 0~70
320x240 WF57C 5.7 143.5 x 104.1 115.2 x 87.6 6H RGB -- No 500 RTP -20~70
320x240 WF57D 5.7 126 x 101.55 115.2 x 86.4 12H RGB -- Option 500 RTP, PCAP -20~70
320x240 WF57ET 5.7 141.12 x 101.55 115.2 x 86.4 12H RGB -- Option 900 RTP, PCAP -20~70 Yes
320x240 WF57ES 5.7 141.12 x 101.55 115.2 x 86.4 12H RGB -- No 1100 No -20~70
640x480 WF57F 5.7 125 x 98.8 115.2 x 86.4 6H RGB -- Option 500 RTP -20~70
320x240 WF57M 5.7 141.12 x 101.55 115.2 x 86.4 12H SPI, UART PIC24 Yes 900 RTP, PCAP -20~70
320x240 WF57P 5.7 141.12 x 101.55 115.2 x 86.4 12H MCU RA8875 Yes 500 RTP, PCAP -20~70
320x240 WF57Q 5.7 141.12 x 101.55 115.2 x 86.4 12H MCU SSD1963 Yes 700 PCAP -20~70
320x240 WF57Q 5.7 141.12 x 101.55 115.2 x 86.4 12H MCU SSD1963 Yes 500 RTP -20~70
320x240 WF57R 5.7 144 x 89.4 115.2 x 86.4 12H RGB -- No 500 No -30~85
320x240 WF57S 5.7 160 x 109 115.2 x 86.4 12H MCU ST7511 No 1000 RTP, PCAP -20~70
320x240 WF57Y 5.7 141.12 x 101.55 115.2 x 86.4 12H RGB -- No 900 RTP -20~70
640x320 WF62A 6.2 170.32 x 88.3 140 x 70 VA Glass MCU ST7511 No 600 No -20~70
800x480 WF70A2T 7 165 x 100 154.08 x 85.92 12H RGB ST-5623 No 400 RTP, PCAP -20~70
800x480 WF70A2S 7 165 x 100 154.08 x 85.92 12H RGB ST-5623 No 900 RTP, PCAP
800x480 WF70A2TIFGDHTV 7 165 x 100 154.08 x 85.92 12H HDMI/Raspberry Pi TFP401 Yes 250 RTP, PCAP -20~70
800x480 WF70A4 7 165.8 x 106.61 152.4 x 91.44 IPS RGB NT51632T+NT52601TT No 1000 No -30~80 N/A
1024x600 WF70A7T 7 164.8 x 99.8 154.2114 x 85.92 12H LVDS EK79001HE+EK73215BCGA No 600 No -20~70
1024x600 WF70A7S 7 169.9 x 103.4 154.2114 x 85.92 12H LVDS EK79001HE+EK73215BCGA No 1100 No -20~70 Yes
1024x600 WF70A7TIAHLNB0 7 202 x 135.5 154.2114 x 85.92 12H LVDS EK79001HE+EK73215BCGA No 450 PCAP -20~70
1024x600 WF70A7TIFHLHTV 7 165 x 99.8 154.2114 x 85.92 12H HDMI/Raspberry Pi TFP401 Yes 400 RTP, PCAP -20~70
1024x600 WF70A8 7 169.9 x 103.4 154.2114 x 85.92 IPS LVDS ST5021+ST5651 No 600 RTP, PCAP -20~70 N/A
800x480 WF70GT 7 165 x 100 154.2114 x 85.92 12H RGB -- Option 460 RTP, PCAP -20~70 Yes
800x480 WF70GS 7 165 x 100 154.08 x 85.92 12H RGB HX8264+HX8664 No 1100 No -20~70
800x480 WF7GTIFGDHTV 7 165 x 100 154.08 x 85.92 12H HDMI/Raspberry Pi TFP401 Yes 320 RTP, PCAP -20~70
800x480 WF70H 7 165 x 104.8 152.4 x 91.44 12H RGB -- Option 460 RTP, PCAP -20~70
800x480 WF70M 7 166.2 x 101.2 154.08 x 85.92 12H SPI, UART STM32 Yes 460 PCAP -20~70
800x480 WF70P 7 165 x 100 154.08 x 85.92 12H MCU RA8875 Yes 460 RTP, PCAP -20~70
800x480 WF70Q 7 165 x 100 154.08 x 85.92 12H MCU SSD1963 Yes 460 (Hi-bright option) RTP, PCAP -20~70 Yes
800x480 WF70R 7 164.9 x 100 154.08 x 85.92 12H RGB -- No 400 RTP -30~85
800x480 WF70Y 7 165 x 100 154.08 x 85.92 12H RGB -- No 460 RTP -20~70
800x480 WF80B 7 192.8 x 116.9 176.64 x 99.36 12H RGB -- No 450 RTP -30~85
800x480 WF80PT 8 192.8 x 116.9 176.64 x 99.36 12H MCU RA8875 Yes 450 RTP -20~70
800x480 WF80Q 8 192.8 x 116.9 176.64 x 99.36 12H MCU SSD1963 Yes 450 RTP -20~70
480x1920 WF88B 8.8 231.3 x 64.3 218.88 x 54.72 IPS MIPI DSI -- No 600 No -20~70 N/A
1024x600 WF90B 9 211.1 x 126.5 196.608 x 114.15 IPS LVDS -- No 500 No -30~85 N/A
1280x800 WF101F 10.1 218 x 137 216.96 x 135.6 IPS LVDS -- No 900 PCAP -20~70 N/A
1280x800 WF101FSYFPLHTV 10.1 230.56 x 155.01 216.96 x 135.6 IPS HDMI/Raspberry Pi TFP401 Yes 750 RTP, PCAP -20~70 N/A
1280x800 WF101G 10.1 229.34 x 148.98 216.96 x 135.6 IPS LVDS -- No 350 RTP -20~70 N/A
800x480 WF102A 10.2 235 x 145.8 222.0 x 132.48 12H RGB -- No 350 RTP -30~85
800x480 WF102P 10.2 235 x 145.8 222 x 132.48 12H MCU RA8875 Yes 350 RTP -20~70
800x480 WF102Q 10.2 235 x 145.8 222 x 132.48 12H MCU SSD1963 Yes 350 RTP -20~70
1024x768 WF104F 10.4 236.0 x 176.9 211.2 x 158.4 6H LVDS -- No 350 No -20~70
1024x768 WF121E 12.1 260.5 x 204.0 245.76 x 184.32 IPS LVDS -- No 600 No -30~80 N/A
1920x720 WF123B 12.3 308.10 x 130.00 292.032 x 109.512 IPS 2 ch LVDS -- No 800 No -30~85 N/A
1024x768 WF150A 15 354.1 x 277.1 304.1 x 228.1 IPS LVDS -- No 250 PCT -20~70 N/A
