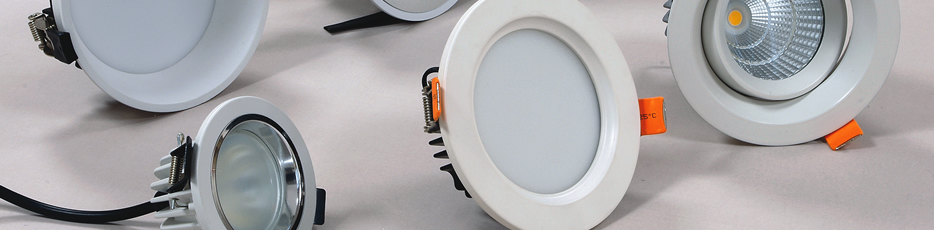

Our range of gimballed COB LED downlights are designed as suitable replacements for traditional incandescent light sources incorporating the latest LED technology to maximise performance, light output and lifetimes. The range encompasses power ratings from 6W to 50W  for indoor installations and the construction features an adjustable gimbal..

PFD90G-7W Series

The PFD90G -7W COB series are adjustable high power 7W LED downlights in a choice of finishes designed for installation in recessed ceilings. An external driver is supplied for connection to AC mains supply. A choice of lens covers: Clear, Frosted, Spot Frosted and a choice of bezel finishes: White, Silver, Black are available

  • Supply voltage 240VAC external driver
  • Power consumption 7W
  • Bezel Diameter 90mm, Hole cut-out 75-80mm
  • Choice of lens cover and bezel finishes
  • Choice of colour temperatures
  • 650lm typ
  • Choice of Beam angle 25°, 38° and 60°
  • Optional dimmable drivers

PFD90G-7W Series PDF

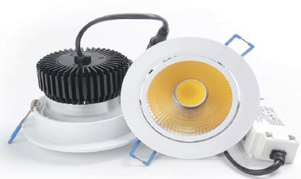

PFD110G-10W Series

The PFD110G -10W COB series are adjustable high power 10W LED downlights in a choice of finishes designed for installation in recessed ceilings. An external driver is supplied for connection to AC mains supply. A choice of lens covers: Clear, Frosted, Spot Frosted and a choice of bezel finishes: White, Silver, Black are available

  • Supply voltage 240VAC external driver
  • Power consumption 10W
  • Bezel Diameter 110mm, Hole cut-out 95-100mm
  • Choice of lens cover and bezel finishes
  • Choice of colour temperatures
  • 1200lm typ
  • Choice of Beam angle 30° and 50°
  • Optional dimmable drivers

PFD110G-10W PDF

PFD138G-20W Series

The PFD138G -20W COB series are adjustable high power 20W LED downlights in a choice of finishes designed for installation in recessed ceilings. An external driver is supplied for connection to AC mains supply. A choice of lens covers: Clear, Frosted, Spot Frosted and a choice of bezel finishes: White, Silver, Black are available

  • Supply voltage 240VAC external driver
  • Power consumption 20W
  • Bezel Diameter 138mm, Hole cut-out 120-125mm
  • Choice of lens cover and bezel finishes
  • Choice of colour temperatures
  • 2400lm typ
  • Choice of Beam angle 30° and 50°
  • Optional dimmable drivers

PFD138G-20W PDF

PFG160G-30W Series

The PFD160G -30W COB series are adjustable high power 30W LED downlights in a choice of finishes designed for installation in recessed ceilings. An external driver is supplied for connection to AC mains supply. A choice of lens covers: Clear, Frosted, Spot Frosted and a choice of bezel finishes: White, Silver, Black are available

  • Supply voltage 240VAC external driver
  • Power consumption 30W
  • Bezel Diameter 160mm, Hole cut-out 145-150mm
  • Choice of lens cover and bezel finishes
  • Choice of colour temperatures
  • 3500lm typ
  • Choice of Beam angle 25° and 55°
  • Optional dimmable drivers

PFD180G Series

The PFD180G -40W COB series are adjustable high power 40W LED downlights in a choice of finishes designed for installation in recessed ceilings. An external driver is supplied for connection to AC mains supply. A choice of lens covers: Clear, Frosted, Spot Frosted and a choice of bezel finishes: White, Silver, Black are available

  • Supply voltage 240VAC external driver
  • Power consumption 40W
  • Bezel Diameter 180mm, Hole cut-out 165-170mm
  • Choice of lens cover and bezel finishes
  • Choice of colour temperatures
  • 4800lm typ
  • Choice of Beam angle 25° and 55°
  • Optional dimmable drivers

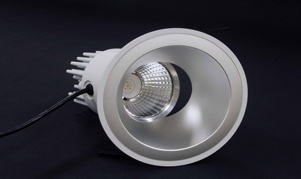

PLA162RGB/W Series

The PLA162RGB/W series are adjustable high power 19~27W LED downlights constructed from powder coated, die cast aluminium with reflector. The fitting is offered with RGB or RGBW high power array for full colour illumination and dynamic lighting schemes.

  • Supply voltage 240VAC external driver
  • Bezel diameter 150mm
  • Hole cut-out 133mm diameter
  • Power consumption 19W to 27W
  • Low glare
  • Choice of colour temperatures
  • Adjustable beam angle 30° to 38°
  • Choice of controller/ drivers

PLA162RGB/W PDF
