Mains Input DALI-2 6W CC NFC

The SE-6 series NFC DALI-2 DT6 LED drivers convert DALI signal to constant current PWM signal. Features include NFC programming by App in 1mA steps. Drivers conform to International safety and EMC standards.

  • AC mains input 220-240VAC
  • SE-6-100-450-G1D Adj CC output 100mA - 450mA
  • SE-6-350-700-G1D Adj CC output 350mA - 700mA
  • Output power ratings from 6W
  • 0-100% flicker free dimming
  • Short circuit, over temp, auto recovery
  • Meets EU’s ErP Directive, networked standby<0.5W
  • 119×22×20mm (LxWxH)

SE-6W PDF

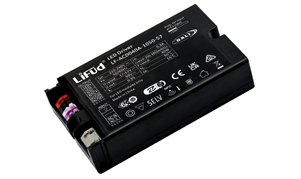

Mains Input Compact DALI 9W-40W CC

The Lifud ADD series AC mains input DALI-2 LED drivers convert DALI signal to constant current PWM signal. The range offers a choice of 4 output power ratings, current set by DIP switch and "push" dimming function. Drivers conform to International safety and EMC standards.

  • AC mains input 240VAC
  • CC output from 100mA - 1050mA
  • Output power ratings 4W to 40W
  • Output Voltage 9V to 42V
  • DALI-2, DT6
  • 1% depth smooth dimming

LF-ADD013-0400-42 PDF

Mains Input DALI 10W-12W CC

The SE series AC mains input LED drivers convert DALI signal to constant current PWM signal. Features include a choice of 8 output currents set by DIP switch & multiple dimming modes. Drivers conform to International safety and EMC standards.

  • AC mains input 240VAC
  • 8-in-1 Adjustable CC output 100mA - 700mA
  • Output power ratings10W and 12W
  • DALI dimming IEC62386
  • 0-100% flicker free dimming
  • Short circuit, over temp, auto recovery
  • 135×30×20mm (LxWxH)

SE-10W-12W_100_700 PDF

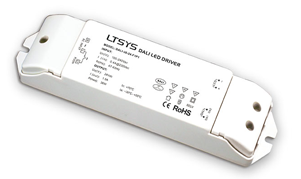

Mains Input DALI 15W-36W CC

The LT-DALI-CC series AC mains input LED drivers convert DALI signal to constant current PWM signal. Features include a range of output power ratings & multiple dimming modes. Output current may be set by DIP switch. Drivers conform to International safety and EMC standards.

  • AC mains input 240VAC
  • Adjustable constant current output
  • Output power ratings from 10W to36W
  • DALI dimming IEC62386
  • 0-100% flicker free dimming
  • Short circuit, over temp, auto recovery
  • 175x44x30mm (LxWxH)

DALI-15W-25W-36W-U1P2 PDF

Mains Input DALI-2 NFC 10W-40W CC

The SE W1D series NFC DALI DT6 to PWM  single channel constant current LED drivers feature DALI-2 input and programmable constant current output. The output current may be set by NFC programming App or tool. Drivers conform to International safety and EMC standards.

  • AC mains input 100-240VAC
  • Precision adjustable constant current output to 1mA
  • Output power rating 12W to 40W
  • DALI DT6 dimming IEC62386
  • 1-100% flicker free dimming
  • Short circuit, over temp, auto recovery

SE-20-100-700-W1D NFC PDF

SE-30-200-800-W1D NFC PDF

SE-40-300-1050-W1D NFC PDF

Mains In DALI-2 NFC 10W-40W CC DT6/8

The SE W2D series NFC DALI-2 to PWM Dual channel constant current LED drivers are designed for tueable white LED control and feature DALI-2 input and programmable constant current output. The output current may be set by NFC programming App or tool. Drivers conform to International safety and EMC standards.

  • AC mains input 100-240VAC
  • Dual Channel DT6/DT8 tunable white LED driver
  • Precision adjustable constant current output to 1mA
  • Output power rating 12W to 40W
  • DALI dimming IEC62386
  • 1-100% flicker free dimming
  • Short circuit, over temp, auto recovery

SE-20-100-700-W2D PDF

Mains Input DALI 50W CC

The SRP-2305-50-CC DALI to PWM  single channel constant current LED driver features DALI input and AC "push" dimming. The output current may be set by DIP switch from 250mA to 1500mA. Drivers conform to International safety and EMC standards.

  • AC mains input 240VAC
  • Adjustable constant current output
  • Output power rating 50W
  • DALI dimming IEC62386
  • 0-100% flicker free dimming
  • Short circuit, over temp, auto recovery
  • 210x50x32mm (L*W*H)

SRP-2305-50-CC PDF

Mains Input DALI 60W CC

The Lifud LF-GSD060YC DALI to PWM  single channel constant current LED driver features DALI input, 1-10v and AC "push" dimming. The output current may be set by DIP switch from 1100mA to 1500mA. Drivers conform to International safety and EMC standards.

  • AC mains input 240VAC
  • Adjustable constant current output
  • Output power rating 60W
  • DALI dimming IEC62386
  • Mains "push" dimming
  • 1-10v, PWM and resistor dimming
  • 0-100% flicker free dimming
  • Short circuit, over temp, auto recovery
  • 126x81x31mm (L*W*H)

LF-GSD060YC  PDF

DALI/DMX to 0-10V Dimming Module

The LT-84A  AC mains input Dimming Module is a 4-channel DMX/DALI to 0-10V driver designed to convert DALI or DMX512 digital signal to 0-10v. Drivers conform to International safety and EMC standards.

  • AC mains input 100-240VAC
  • DMX or DALI input
  • Mains "push" dimming
  • 4-Channel output
  • Optional output: 0-10V, 5VPWM, 10VPWM.
  • 0-100% flicker free dimming IEEE 1789
  • DALI bus standard: IEC62386-101,102,207.
  • Soft-on and fade-in dimming function

LT-84A PDF
