Our comprehensive range of LED down lights are designed as suitable replacements for traditional incandescent lighting to reduce energy costs. Incorporating the latest LED technology to maximise performance, light output and lifetimes the range encompasses miniature types from 3W to 8W along with larger high flux fittings up to 60W. Applications span from retail & point of sale, commercial, industrial and domestic environments.

DL4-BS-E Series

The DL4-BS-E series encompasses a range of high intensity LED down lights with adjustable power rating from 9W to 15W. Designed for installation in recessed ceilings. The colour rendering CRI>82.

  • Supply voltage 240VAC external driver
  • Bezel Diameter 148mm
  • Hole cut-out 120-125mm diameter
  • Power consumption 9W to15W
  • Low glare
  • Choice of colour temperatures
  • Beam angle 100°
  • Choice of dimmable drivers

DL-4BS Series PDF

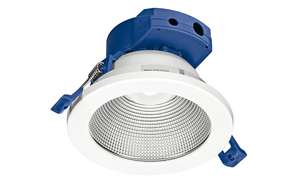

DLA-G2 Series

The DLA-G2-100mm series high intensity LED down lights are rated at 10W and designed for installation in recessed ceilings. The downlight may be specified with a choice of reflectors to select the beam angle. Small colour tolerance Macadam 4Choice of reflectors for beam angle 60°, 90°CRI>8.

  • Supply voltage 240VAC external driver
  • Bezel Diameter 114mm
  • Power consumption 10W
  • Low glare
  • Choice of colour temperatures
  • Beam angle 60 -90°
  • Choice of dimmable drivers

DLA-G2-100 PDF

DLX-WA Series

The DLX-WA series encompasses a range of high intensity LED down lights rated from 7W to 40W designed for installation in recessed ceilings. The colour rendering CRI>82.

  • Supply voltage 240VAC external driver
  • Bezel diameter 110mm
  • Hole cut-out 75 - 100mm diameter
  • Power consumption 7W to 40W
  • Low glare
  • Choice of colour temperatures
  • Beam angle 100°
  • Choice of dimmable drivers

DLX-WA Series Selector Guide PDF

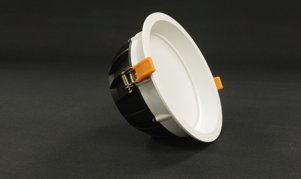

DL6-BS Series

The DL6-BS series encompasses a range of high intensity LED down lights rated from 9W to 30W designed for installation in recessed ceilings. The colour rendering CRI>82.

  • Supply voltage 240VAC external driver
  • Bezel diameter 195mm
  • Hole cut-out 170 - 175mm diameter
  • Power consumption 9W to 30W
  • Low glare
  • Choice of colour temperatures
  • Beam angle 100°
  • Choice of dimmable drivers

DL6-BS PDF

DL-BS-RH Series

The DL-BS-RH series encompasses a range of high intensity LED down lights designed for installation in recessed ceilings. Available in 3 sizes, fittings are rated from 30W to 60W. The colour rendering CRI>82.

  • Supply voltage 240VAC external driver
  • Bezel diameter 185 - 282mm
  • Hole cut-out 170 - 230mm diameter
  • Power consumption 30W to 60W
  • Low glare
  • Choice of colour temperatures
  • Beam angle 100°
  • Choice of dimmable drivers

PLA162RGB/W Series

The PLA162RGB/W series are adjustable high power 19~27W LED downlights constructed from powder coated, die cast aluminium with reflector. The fitting is offered with RGB or RGBW high power array for full colour illumination and dynamic lighting schemes.

  • Supply voltage 240VAC external driver
  • Bezel diameter 150mm
  • Hole cut-out 133mm diameter
  • Power consumption 19W to 27W
  • Low glare
  • Choice of colour temperatures
  • Adjustable beam angle 30° to 38°
  • Choice of controller/ drivers

PLA162RGB/W PDF

GBDL Slimline Series

The GBDL series are low profile LED downlights are designed for installation in recessed ceilings where space is limited.

  • Supply voltage 240VAC external driver
  • Choice of Bezels
  • Choice of hole cut-out
  • Power consumption 7W to 24W
  • Low glare
  • Choice of colour temperatures
  • Beam angle 120°
  • Choice of controller/ drivers

SMR-PL Surface Mount Series

The SMR-PL10 series LED downlights are discrete luminaires designed to be surface mounted for ceiling and wall mount.

  • Supply voltage 240VAC external driver
  • 300mm diameter
  • 38mm profile
  • Power consumption 7W to 24W
  • Low glare
  • Choice of colour temperatures
  • Beam angle 120°
  • Choice of controller/ drivers
